Item specifics
  • Brand Name: MJJC
  • Item Type: Switches
  • Certification: EMC,RoHS,CE,CCC
  • Material: Plastic
  • Current: 10A
  • Switch Type: Proximity Switch
  • Model Number: MJJC-PIR-Sensor
  • Warranty: 1 Years
  • Features: Motion Sensor
  • Voltage: 110V 220V AC or 12V DC
  • Detecting Distance: 12M
  • Feature 1: Outdoor PIR Sensor
  • Feature 2: 12V Motion Sensor
  • Feature 3: PIR Sensor 220V
  • Feature 4: Motion sensor 220v
  • Feature 5: Sensor Motion
  • Feature 6: Movement Detector
  • Feature 7: Motion Sensor Light Switch

Product Description
Descriptions:
1. Easy to install.
2. Automatic, convenient, safe and practical.
3. It has the function of power and detection indication.
4. The motion sensor can identify day and night automatically.
5. It has wide detection range made up of up and down, left and right service field.
6. This product is a new type of energy-saving lighting switch,
it adopts high sensitivity detector, integrate circuit and SMT.
7. It utilizes human motion infrared rays as control signal sources,
when one enters the detection field, it will start the controlled load at once.



Specifications:
Color: Grey, Black, White
Material: ABS
Working Rotation: 180 Degree
Voltage: AC85V~265V, DC 12V
Standard: LVD, EMC, CE, RoHS
IP Rating: Indoor application IP44
LUX Setting: 2-2000lux svr adjustable
Size: As shown on the picture
Induction lighting time: 5s~6min adjustable time
Detection distance: Approx 12M, installation 1.5-2.5M High

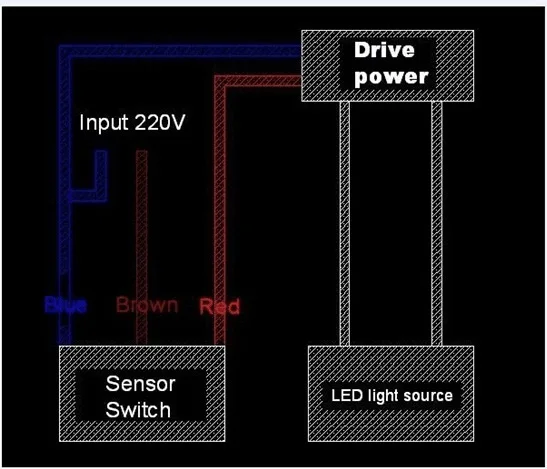

Connection:
Blue color: Negative line (-)
Brown color: Live wire (+)
Red: Ground wire


For 220v motion sensor, you just provide 220V voltage to sensor,dont need the driver. aliexpress nepal
Only 12V DC motion sensor need a  220V AC to 12V DC Driver or we said power supply or power adapter.
aliexpress nepal
Output: Maximum 1000W incandescent lamp, 100W fluorescent lamp ,
Exhaust fan 100W, Motor 100W, Electric bell 100W

NOTE:
The item can be less sensitive if you go forward the detector,
but it can be sensitive if you go down the for cross section.
If the person stop moving under the motion sensor, it can't light on also.
When it is very hot in summer, then temperature of environment is nearly the same as people, it may not detect well.



Package Included:
1 x Motion Sensor
